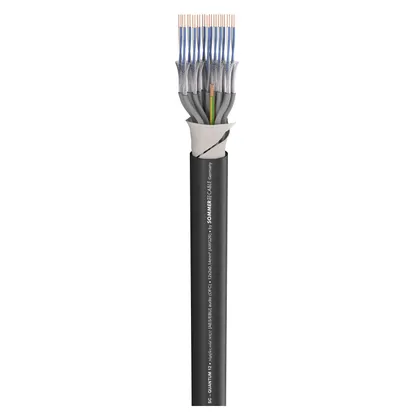

sommercable SC-Quantum QMC12
Advantages:
- Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage)
- Very low wire/wire capacitance
- Highly flexible and reelable without twisting
- In compliance with AES/EBU ()
- Affordable price
Application:
- Professional stage and live multicore for separate or central earthing
- Creation of highly flexible studio looms, analogue and digital
- Permanent Installation
Technical Data:
- Name: SC-Quantum QMC12
- Properties: Strong PVC-jacket
- Properties: Torsion-free
- Properties: Analog
- Properties: OFC oxygen free copper
- Properties: Digital 110 Ω AES / EBU
- Application area: Stage / live
- Application area: Mobile outdoor / indoor
- Application area: Studio / Broadcast
- Application area: Installation
- Application: Multipair
- Colour: black
- Signal transmission: symmetrical
- Construction: [12(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y
- Jacket material: S-PVC
- Jacket Ø: 16,00 mm
- Number of Channels (audio): 12
- Inner conductor (audio): 2
- Inner conductor (audio): 0,14 mm²
- Inner conductor Ø (audio): 0,42 mm
- AWG (audio): 26
- Shielding: Copper spiral in pairs, tin-plated
- Shielding factor: 99 %
- Copper strands (audio): 36
- Copper strand Ø (audio): 0,07 mm
- Weight per 1 m: 318 g
- UV-resistant: yes
- Fire load per m: 0,26 kWh
- Fire load per m: 0,83 kWh
- Style variant: round
- Packing: bulk stock
- Temperature min.: -25 °C
- Temperature max.: 80 °C
- Capac. cond./cond. per 1 m (audio): 45 pF
- Capac. cond./shield. per 1 m (audio): 90 pF
- Impedance: 110 Ω
- Insulation resist. per 1 km: 0,02 GΩ
- Insulation resist. per 1 km (audio): 0,02 GΩ
- Conductor resistance per 1 km: 138 Ω
- BPVo-Euroclass: Fca
on stock delivery within 2-3 days
