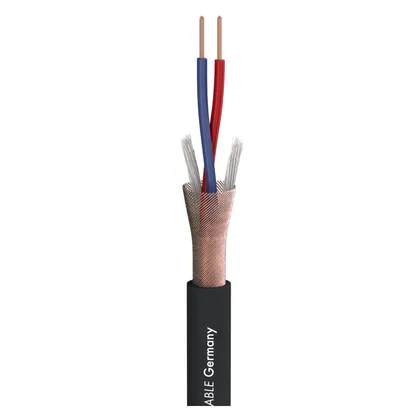

Sommer Cable DMX Binary 234 AES/EBU MKII

€1.34 (excl. VAT / BTW)

DMX Binary 234 AES/EBU MKII; 2 x 0.34 mm² PVC Ø 6,20 mm black

Advantages:

  • AES/EBU- and DMX-conformant, highly flexible
  • Very good shielding due to the use of a helical copper mesh screen plus
    an aluminium-vaporised fleece
  • Extremely rugged due to the special tough jacket
  • Only a little more expensive than a standard microphone cable

Application:

  • Networking of scanners, lighting systems, digital mixing consoles etc.
  • For indoor and outdoor installation
  • Connection of digital audio amplifiers, DAT recorders etc.

Technical Data:

- Article number: 520-0051

- Name: Binary 234 AES/EBU MKII

- EAN: 4049371002349

- Properties: Analog

- Properties: OFC oxygen free copper

- Properties: Digital 110 Ω AES / EBU

- Application area: Stage / live

- Application area: Mobile outdoor / indoor

- Application area: ELA 100 V

- Application area: Installation

- Application area: Studio / Broadcast

- Application: DMX

- Colour: black

- Signal transmission: symmetrical

- Construction: (2LI2Y0,34mm²)(ST)DY

- Jacket material: PVC

- Jacket Ø: 6,20 mm

- Number of Channels (AES/EBU, DMX): 1

- Inner conductor (AES/EBU, DMX): 2

- Inner conductor (AES/EBU, DMX): 0,34 mm²

- Inner conductor Ø (AES/EBU, DMX): 0,66 mm

- AWG (AES/EBU, DMX): 22

- Shielding: Copper spiral shielding + aluminum steamed fleece

- Shielding factor: 100 %

- Copper strands (AES/EBU, DMX): 19

- Copper strand Ø (AES/EBU, DMX): 0,15 mm

- Conductor insulation material: Foam / Skin-PE

- Conductor insulation Ø: 1,50 mm

- Weight per 1 m: 50 g

- UV-resistant: yes

- Fire load per m: 0,17 kWh

- Style variant: round

- Packing: 100 m spool

- Temperature min.: -25 °C

- Temperature max.: 70 °C

- Width: 6,2 mm

- Height: 6,2 mm

- Capac. cond./cond. per 1 m (AES/EBU, DMX): 63 pF

- Capac. cond./shield. per 1 m (AES/EBU, DMX): 115 pF

- Impedance: 110 Ω

- Insulation resist. per 1 km: 1 GΩ

- Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ

- Conductor resistance per 1 km: 53 Ω

- Shield. resistance per 1 km: 28 Ω

- BPVo-Euroclass: Fca

On stock. Delivery usually within 1-2 days *
