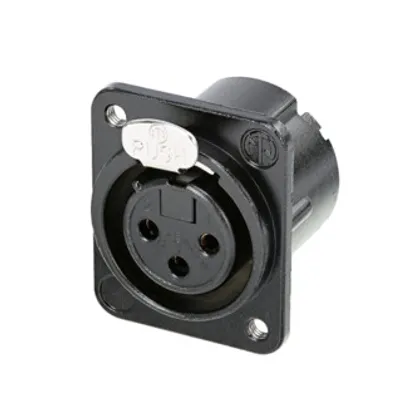

NC3FD-LX-M3-BAG
3 pole female receptacle, solder cups, black housing, silver contacts, M3 mounting holes
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Technical Information
| Title |
NC3FD-LX-M3-BAG |
| Connection Type |
XLR |
| Gender |
female |
| Capacitance between contacts |
≤ 4 pF |
| Contact resistance |
≤ 5 mΩ |
| Dielectric strength |
1,5 kVdc |
| Insulation resistance |
> 10 GΩ (initial) |
| Rated current per contact |
16 A |
| Rated voltage |
< 50 V |
| Insertion force |
≤ 20 N |
| Withdrawal force |
≤ 20 N |
| Lifetime |
> 1000 mating cycles |
| Wiresize |
max. 2.5 mm² |
| Wiresize |
max. 14 AWG |
| Wiring |
Solder contacts |
| Locking device |
Latch lock |
| Mounting direction |
Rear mounting |
| Chassis shape |
D |
| Mounting |
Mounting holes with M3 threads |
| Contact plating |
2 µm Ag |
| Contacts |
Bronze (CuSn6) |
| Insert |
PA66 |
| Locking element |
Steel Ck67 |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell plating |
Black chromium |
| Flammability |
UL 94 V-0 |
| Standard compliance |
IEC 61076-2-103 |
| Protection class |
IP 40 |
| Solderability |
Complies with IEC 68-2-20 |
| Temperature range |
-30 °C to +80 °C |
