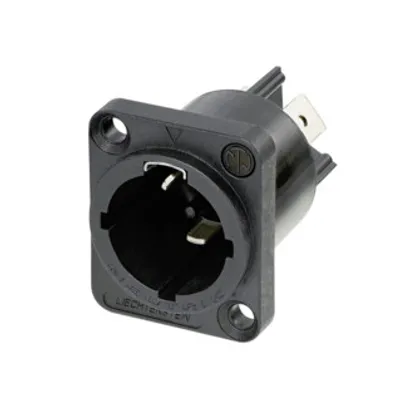

NAC3MPX-TOP
Appliance inlet connector, 1/4" flat tab terminals
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Technical Information
| Contact resistance |
≤ 2 mΩ |
| Dielectric strength |
4 kVdc / 2.8 kVac |
| Insulation resistance |
> 1 GΩ (after damp heat test) |
| Number of electrical contacts |
2 + PE |
| Rating Europe |
EN 60320-1: 16 A 250 V AC |
| Rating USA |
UL 498: 20 A 250 V AC |
| Lifetime |
> 5000 mating cycles |
| Wiresize |
2.5 mm² |
| Wiresize |
12 AWG |
| Contact plating |
2 µm Ag |
| Locking element |
Stainless steel |
| Shell |
Polyamide (PA 6.6) |
| Contacts |
Spring Copper (CuSn0.2) |
| Flammability |
UL 94 V-0 |
| Protection class |
IP65, UL50E enclosure type4 rating in combination with SCNAC-MPX (mated or with closed cap) |
| Temperature range |
- 30 °C - +80 °C |
