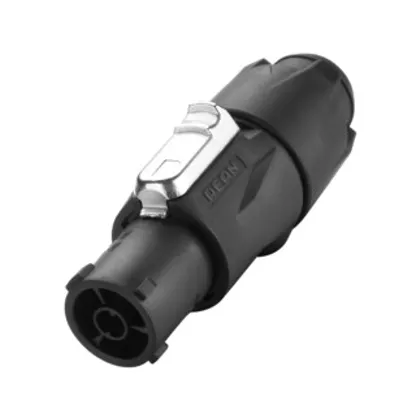

Lockable female cable connector, with excellent flammablity class by using V0 materials.
Designed for outdoor applications, IP65 protection, weather resistant.
The power X series are connectors with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
| Product | |
| Title | RCAC3F-X-000 |
| Connection Type | Power Connectors |
| Electrical | |
| Number of contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC |
| Rating USA | UL 60320-1: 20 A 250 V AC |
| Dielectric strength | 4 kV dc / 2.8 kV ac |
| Contact resistance | ≤ 2 mΩ |
| Insulation resistance (after dampheat) | > 0.1 GΩ |
| Mechanical | |
| Retention method | Twist lock |
| Lifetime | > 5000 mating cycles |
| Cable O.D. range | 6 - 12 mm |
| Wiring | Screw terminals |
| Wiresize | 1.0 - 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
| Shell | Polyamide |
| Insert | Polyamide |
| Contacts | Copper alloy |
| Contact plating | Ag |
| Strain relief | PBT |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
| Flammability | UL94 V-0 |
